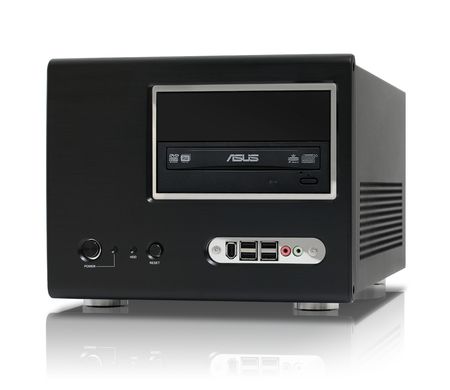

Stratosphere Studio

Compact executive desktop workstations for up to 12 monitors

New March 2015 models feature ASUS military-grade motherboard, 3-year standard warranty, ultra-fast Samsung solid state drive (SSD)

  • Scale from Intel Core i3 to fastest Intel Core i7-4790K processor
  • New! 120GB ultra-fast Samsung solid-state drive (SSD), upgradable to 1TB
  • Advanced custom options including many new graphics configurations
  • Compact executive desktop chassis with ultra-quiet cooling
  • New! Includes 3 years warranty + 3 years expert support
Starting Price: $1,369.00 USD
Technical highlights:
  • New! Reliable ASUS military-grade motherboard with Intel's latest Z97 chipset
  • New! Samsung 120GB solid state drive with top performance, 5-year warranty
  • Optional Core i7-4790K processor: 4.0 – 4.4 GHz, 4 cores, 8 threads
  • New! Optional NVIDIA GeForce GTX 970 4GB graphics – top performance

  • All-new Intel Core i5 / Core i7 processors
    Upgrade to top-of-line Core i7-4790K, 4.0 - 4.4 GHz

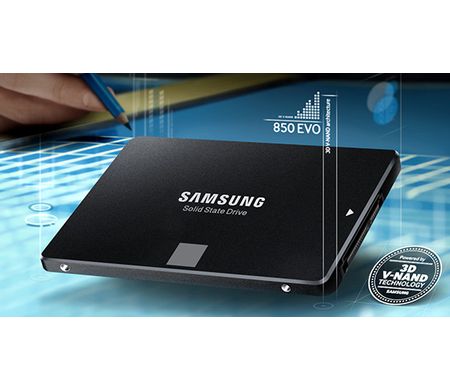

  • Ultra-fast, highly reliable Samsung solid-state drive
    120GB - 1TB SSD capacity · 5-year warranty · Top performance
  • Military-grade ASUS TUF-series motherboard
    5-year motherboard warranty · Top reliability

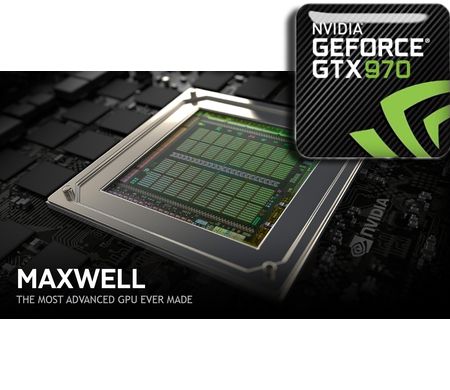

  • Optional NVIDIA GeForce GTX 970 4GB graphics
    Top performance · Maxwell architecture · 4K UHD monitor support
Choose a goal

Minimum number of monitors?
2 3 4 6 8
Maximum number of monitors?
2 3 4 6 8+

Monitor connection type?
 Show all
 DVI (HDMI with optional adapter)
 DisplayPort or Mini DisplayPort

Price filter?
hide products more than ...



Change Results View
Show Details      moreResults Columns 2 3 4 5
Sort by:
Products shown: 9
Current search results shown
$1,369 to $2,159 USD

Stratosphere Studio X2



Stratosphere Studio X3



Stratosphere Studio X4


Remove products from view Uncheck to remove Uncheck to remove Uncheck to remove
Base price$1,369.00 USD$1,399.00 USD$1,599.00 USD
HighlightsUpdated! Compact, highly affordable business / trading computer for two monitors: Fast new Intel Core i3 / i5 / i7 processors  ·  Fast & reliable Samsung 850 EVO Solid-State Drive (SSD)Updated! Compact business / trading computer for three monitors: Fast new Intel Core i3 / i5 / i7 processors  ·  Fast & reliable Samsung 850 EVO Solid-State Drive (SSD)Updated! Compact business / trading computer for four monitors: Fast new Intel Core i3 / i5 / i7 processors  ·  Fast & reliable Samsung 850 EVO Solid-State Drive (SSD)
Operating systemsWindows 7 Home Premium (standard), Windows 7 Professional, Windows 8.1
Multitasking Performance
Index (MPI)
7.4 - 4.5
Standard CPUIntel Core i3-4150
3.5 GHz dual‑core CPU:
2 cores · 4 threads
Upgrade CPU seriesIntel Core i7-4770K
4 - 4.4 GHz quad‑core CPU:
4 cores · 8 threads
Chipset · PCI Express bandwidthIntel Z97 · 16 PCI Express 3.0 + 8 PCI Express 2.0 graphics lanes
CPU cores: standard / max2 / 4
Direct monitor connectionsUp to 2 DVI / HDMI monitorsUp to 3 DVI / HDMI monitorsUp to 4 DVI / HDMI monitors
DisplayPort 1.2 daisy chain3 x DisplayPort MST monitorsN/A
4K UHD monitor support1 x 4K UHD monitor (DisplayPort)N/A
Primary graphics processorIntel HD Graphics 4600/4400 (upgradable)NVIDIA GeForce GTX 750 (upgradable)
Graphics featuresIntel business graphics · silent cooling: passive design2GB fast GDDR5 memory · ultra-fast performance for all apps · DVI and HDMI 1.4 outputs · cool & quiet 55W TDP · ultra-quiet fan
Digital display ports
    2 x DVI (single-link)
    1920 x 1200 max resolution
  • 1 x DisplayPort 1.2
    2560 x 1600 max resolution / screen
  • 3 x DVI-D (single-link)
    1920 x 1200 max resolution
  • 1 x DisplayPort 1.2
    2560 x 1600 max resolution / screen
  • 4 x DVI, 2 with dual-link support
    (2) screens: 2560 x 1600 maximum
    (2) screens: 1920 x 1200 maximum
Business graphics performance25.6 GB/sec (all screens)80 GB/sec (all screens)
3D motion graphics performance2.6 billion/sec fill rate32.6 billion/sec fill rate
Graphics hardware accelerationDirectX 11.1 / OpenGL 4DirectX 11.2 / OpenGL 4.4
Secondary graphics processorN/A
Standard / maximum memory8 GB / 32 GB 1600 MHz DDR3
System drive (upgradable)120GB Samsung
Secondary storage driveOptional
Optional hard drive configurationSolid State Drives (SSDs); hard drives up to 2TB capacity
Bootable backup hard driveOptional
Primary optical drive24X DVD±RW burner
Secondary optical driveN/A
Connectivity highlights12 USB, 1 Gigabit LAN
Keyboard / mouseNo keyboard/mouse
Power consumption (DC)-
Power supply430W, <20 dBA ultra-quiet, 80+ efficiency
Power protectionSurge suppressor
System chassisDeluxe compact case with brushed aluminum front panel, ultra‑ quiet premium cooling
Dimensions8.5" (H) x 10.4" (W) x 15.5"(D)
Warranty3-year parts/labor warranty; next-business day Intel CPU delivery (USA)
Products 4 - 6

Stratosphere Studio Z4


Stratosphere Studio X6


Stratosphere Studio Z6

Remove products from view Uncheck to remove Uncheck to remove Uncheck to remove
Base price$1,699.00 USD$1,649.00 USD$1,799.00 USD
HighlightsNew! Compact, affordable, high-performance business computer for 4 DisplayPort monitors: Fast new Intel Core i3 / i5 / i7 processors  ·  Fast & reliable Samsung 850 EVO Solid-State Drive (SSD)Updated! Compact business / trading computer for six monitors: Fast new Intel Core i3 / i5 / i7 processors  ·  Fast & reliable Samsung 850 EVO Solid-State Drive (SSD)Updated! Compact, affordable, high-performance business computer for 6 DisplayPort monitors: Fast new Intel Core i3 / i5 / i7 processors  ·  Fast & reliable Samsung 850 EVO Solid-State Drive (SSD)
Operating systemsWindows 7 Home Premium (standard), Windows 7 Professional, Windows 8.1
Multitasking Performance
Index (MPI)
7.4 - 4.5
Standard CPUIntel Core i3-4150
3.5 GHz dual‑core CPU:
2 cores · 4 threads
Upgrade CPU seriesIntel Core i7-4770K
4 - 4.4 GHz quad‑core CPU:
4 cores · 8 threads
Chipset · PCI Express bandwidthIntel Z97 · 16 PCI Express 3.0 + 8 PCI Express 2.0 graphics lanes
CPU cores: standard / max2 / 4
Direct monitor connectionsUp to 4 DisplayPort monitorsUp to 6 DVI / HDMI monitorsUp to 6 DisplayPort monitors
DisplayPort 1.2 daisy chain6 x DisplayPort MST monitors (2 chains)3 x DisplayPort MST monitors6 x DisplayPort MST monitors (2 chains)
4K UHD monitor support3 x 4K UHD monitors (DisplayPort)1 x 4K UHD monitor (DisplayPort)Yes (DisplayPort)
Primary graphics processorAMD FirePro W4100 (upgradable)NVIDIA GeForce GTX 750 (upgradable)AMD Radeon HD 7750 (upgradable)
Graphics featuresAMD FirePro professional workstation graphics · certified for pro applications · Mini DisplayPort 1.2a outputs · all-new GPU + fast GDDR5 memory · ultra-quiet fan2GB fast GDDR5 memory · ultra-fast performance for all apps · DVI and HDMI 1.4 outputs · cool & quiet 55W TDP · ultra-quiet fan2GB fast GDDR5 memory · 6 Mini DisplayPort outputs; optional DVI adapters · quiet fan
Digital display ports
  • 4 x DisplayPort 1.2
    2560 x 1600 max resolution / screen
  • Additional DVI / HDMI adapters optional
  • 6 x DVI, 2 with dual-link support
    (2) screens: 2560 x 1600 maximum
    (4) screens: 1920 x 1200 maximum
  • 1 x DisplayPort
    2560 x 1600 max resolution / screen
  • 6 x DisplayPort 1.2
    2560 x 1600 max resolution / screen
  • Additional DVI / HDMI adapters optional
Business graphics performance72 GB/sec (all screens)80 GB/sec (primary screen)64 GB/sec (all screens)
3D motion graphics performance20.2 billion/sec fill rate32.6 billion/sec fill rate19.2 billion/sec fill rate
Graphics hardware accelerationDirectX 11.2 / OpenGL 4.4DirectX 11 / OpenGL 4.2
Secondary graphics processorN/AIntel HD Graphics 4600/4400N/A
Standard / maximum memory8 GB / 32 GB 1600 MHz DDR3
System drive (upgradable)120GB Samsung
Secondary storage driveOptional
Optional hard drive configurationSolid State Drives (SSDs); hard drives up to 2TB capacity
Bootable backup hard driveOptional
Primary optical drive24X DVD±RW burner
Secondary optical driveN/A
Connectivity highlights12 USB, 1 Gigabit LAN
Keyboard / mouseNo keyboard/mouse
Power consumption (DC)-
Power supply430W, <20 dBA ultra-quiet, 80+ efficiency500W, < dBA ultra-quiet, 80+ efficiency
Power protectionSurge suppressor
System chassisDeluxe compact case with brushed aluminum front panel, ultra‑ quiet premium cooling
Dimensions8.5" (H) x 10.4" (W) x 15.5"(D)
Warranty3-year parts/labor warranty; next-business day Intel CPU delivery (USA)
Products 7 - 9

Stratosphere Studio X8


Stratosphere Studio Z8


Stratosphere Studio Z12

Remove products from view Uncheck to remove Uncheck to remove Uncheck to remove
Base price$1,759.00 USD$1,949.00 USD$2,159.00 USD
HighlightsUpdated! Compact business / trading computer for eight monitors: Fast new Intel Core i3 / i5 / i7 processors  ·  Fast & reliable Samsung 850 EVO Solid-State Drive (SSD)New! Compact, affordable, high-performance business computer for 8 DisplayPort monitors: Fast new Intel Core i3 / i5 / i7 processors  ·  Fast & reliable Samsung 850 EVO Solid-State Drive (SSD)Updated! Compact, affordable, high-performance business computer for 12 monitors: Fast new Intel Core i3 / i5 / i7 processors  ·  Fast & reliable Samsung 850 EVO Solid-State Drive (SSD)
Operating systemsWindows 7 Home Premium (standard), Windows 7 Professional, Windows 8.1
Multitasking Performance
Index (MPI)
7.4 - 4.5
Standard CPUIntel Core i3-4150
3.5 GHz dual‑core CPU:
2 cores · 4 threads
Upgrade CPU seriesIntel Core i7-4770K
4 - 4.4 GHz quad‑core CPU:
4 cores · 8 threads
Chipset · PCI Express bandwidthIntel Z97 · 16 PCI Express 3.0 + 8 PCI Express 2.0 graphics lanes
CPU cores: standard / max2 / 4
Direct monitor connectionsUp to 8 DVI / HDMI monitorsUp to 8 DisplayPort monitorsUp to 12 DisplayPort monitors
DisplayPort 1.2 daisy chainN/A12 x DisplayPort MST monitors (4 chains)
4K UHD monitor supportN/A6 x 4K UHD monitor (DisplayPort)Yes (DisplayPort)
Primary graphics processorNVIDIA GeForce GT 740 (upgradable)AMD FirePro W4100 (upgradable)AMD Radeon HD 7750 (upgradable)
Graphics features2GB memory · fast performance for all apps · DVI and HDMI 1.4 outputs · quiet fanAMD FirePro professional workstation graphics · certified for pro applications · Mini DisplayPort 1.2a outputs · all-new GPU + fast GDDR5 memory · ultra-quiet fan2GB fast GDDR5 memory · 12 Mini DisplayPort outputs; optional DVI adapters · quiet fan
Digital display ports
  • 8 x DVI, 4 with dual-link support
    (4) screens: 2560 x 1600 maximum
    (4) screens: 1920 x 1200 maximum
  • 5 x DisplayPort 1.2
    2560 x 1600 max resolution / screen
  • 8 x Mini DisplayPort 1.2
    2560 x 1600 max resolution / screen
  • Additional DVI / HDMI adapters optional
  • 12 x Mini DisplayPort 1.2
    2560 x 1600 max resolution / screen
  • Additional DVI / HDMI adapters optional
Business graphics performance28.5 GB/sec (primary screen)72 GB/sec (all screens)64 GB/sec (all screens)
3D motion graphics performance31.8 billion/sec fill rate20.2 billion/sec fill rate19.2 billion/sec fill rate
Graphics hardware accelerationDirectX 12 / OpenGL 4.4DirectX 11.2 / OpenGL 4.4DirectX 11 / OpenGL 4.2
Secondary graphics processorNVIDIA GeForce GT 740AMD FirePro W4100AMD Radeon HD 7750
Standard / maximum memory8 GB / 32 GB 1600 MHz DDR3
System drive (upgradable)120GB Samsung
Secondary storage driveOptional
Optional hard drive configurationSolid State Drives (SSDs); hard drives up to 2TB capacity
Bootable backup hard driveOptional
Primary optical drive24X DVD±RW burner
Secondary optical driveN/A
Connectivity highlights12 USB, 1 Gigabit LAN
Keyboard / mouseNo keyboard/mouse
Power consumption (DC)-
Power supply500W, < dBA ultra-quiet, 80+ efficiency
Power protectionSurge suppressor
System chassisDeluxe compact case with brushed aluminum front panel, ultra‑ quiet premium cooling
Dimensions8.5" (H) x 10.4" (W) x 15.5"(D)
Warranty3-year parts/labor warranty; next-business day Intel CPU delivery (USA)
